Branches

A split is the step that lets two contacts of the same flow live different journeys. When a contact reaches it, the step looks at something about them — a tag, a segment, a field of their profile, the order that brought them in, their consent, whether a channel can reach them — and sends them down one branch, the path of steps prepared for people like them. A Spanish customer gets the message in Spanish, a VIP gets the VIP offer, a contact who declined marketing gets a tag instead of a promotion. The decision is instant: the contact doesn't wait at the split, and the step itself never sends anything.

The panel groups these steps under Split the flow in the step palette, and there are nine of them. Eight route by a condition and one, the A/B split, routes at random by percentage. All of them follow the same rules, explained first; each one then has its own section. Some waits also have several outputs — Timezone delay and Smart delay on whether an allowed moment was found, Wait for delivery on whether the message arrived and Wait for activity on a click, a reply or an event — and they are explained in Waits.

How branches work

Every split step is configured in its settings panel under Branches, with Add branch at the bottom. Each branch holds a condition, and the panel reminds you of the one rule that governs them all: Contacts take the first branch they match, top to bottom.

Step	What it looks at	Default branch
Check tag	The tags the contact carries	Everyone else
Check list	The lists the contact belongs to	Everyone else
Check segment	The segments the contact is in	Everyone else
Check attribute	Any field of the contact's profile	Otherwise
Check entry event	The data of the event that started the flow	Otherwise
Check event	Whether the contact did an event	Otherwise
Check consent	Whether the contact meets a consent policy	Two fixed outputs: Has consent / No consent
Check reachability	Whether a channel can reach the contact	Otherwise
A/B split	Nothing: a random draw by percentage	The last slice of the split

The first matching branch wins

Branches are checked in order, from the top of the list to the bottom, and the contact takes the first one whose condition they meet. Later branches are not looked at, even if the contact would match them too. Each contact therefore takes exactly one branch.

Order is how you set priority. In a split by tag with a branch for One of: vip above a branch for One of: newsletter, a VIP who is also on the newsletter goes down the VIP branch. Swap the two and the same contact gets the newsletter path. When two conditions can overlap, put the most specific one, or the one that matters most, at the top.

The default branch

Below the branches you add there is always one more: the default branch, which the panel describes as Taken when no branch above matches. It is what guarantees that every contact leaves the split, including the ones you didn't plan for. It is always the last one: it can't be moved, deleted or given a condition, but it can be renamed. Its name depends on the step: Everyone else in Check tag, Check list and Check segment, and Otherwise in Check attribute, Check entry event, Check event and Check reachability.

Leaving the default branch empty is a perfectly valid choice: contacts who take it skip straight to whatever comes after the split.

Adding, ordering and naming branches

• Add branch adds a branch at the end of the list, just above the default one. A split holds up to 10 branches plus the default branch, and at least one.
• Order: drag a branch by its handle, or use Move up and Move down in its menu.
• Rename branch, in the same menu, asks for a Branch name. Leave it empty to go back to the automatic title.
• Remove deletes the branch, together with the steps placed in it; the menu greys the option out when only one branch is left. Undo, in the editor toolbar, brings it back.

A branch without a name takes an automatic title from its condition: One of: vip or None of: vip in Check tag, Check list and Check segment, the event's name in Check event, the states it covers in Check reachability (Supported / Unknown), and Branch 1, Branch 2… everywhere else. That last case includes Check attribute, where a branch for Country is Spain is still called Branch 1 until you rename it. The same title appears on the branch's label on the canvas.

A branch that can never match blocks publishing: a branch of Check tag, Check list or Check segment with no value, a branch of Check attribute or Check entry event with no condition, a branch of Check event with no event, or a branch of Check reachability with no state. The draft can still be saved, and the problem is listed under Fix your flow to publish it (see Building a flow).

After the branch, the contact continues below the split

A branch is a detour, not a separate ending. When a contact reaches the end of their branch, they continue with whatever is placed below the split, where all its branches rejoin; you never draw that join. How this looks on the canvas, and where each + inserts a step, is explained in Building a flow › Splits, branches and where a step lands.

To end the run inside a branch instead, put an Exit flow step at the end of it: the contact's run ends there and they don't continue below the split (see Goals and exits).

How recent the information is

Branches decide on what Instasent knows about the contact at that moment:

• Check tag, Check list, Check consent and Check reachability read the contact as it is right now.
• Check segment, Check attribute and Check event can take a few seconds to reflect a very recent change: a field updated, or an event received, in the last few seconds before the contact reaches the split may not be seen yet.
• A branch placed right after an Update tags or Update lists step sees the value from before that update. If a split has to see a tag or list that the same flow has just added, put a wait between the two steps (one minute is the minimum, and enough).

Flows that use the Instant processing mode get a similar warning in the trigger settings: without the short processing window before entry, branches may not see the last few seconds of activity (see The trigger: who enters and when).

Knowing which branch a contact took

The contact's journey lists every step the run went through, with its name and status, but it doesn't say which branch of a split was taken. You can tell from the step that follows, or, after a message, from View message. That is the best reason to name your branches and the steps inside them after what they mean — "Spain", "VIP offer" — rather than leaving Branch 1 (see Monitoring a flow).

Once the flow is published, the canvas of the live version shows each branch with its share of the contacts that have already chosen a branch at that step (they add up to at most 100 %). Shares are counted over runs, not people, so a contact who entered the flow twice is counted twice (see Flow analytics). When you test a draft with one contact, you can force which branch the test run takes at each split (see Testing, publishing and versions).

Splits add no charge of their own: only the messages a flow sends are billed (see Sending messages).

By tag, list or segment

Check tag, Check list and Check segment route by what the contact belongs to. They are the quickest way to give a group its own path: VIP customers, the members of a "wholesale" list, the contacts in a "Bought in the last 90 days" segment.

Each branch has two parts:

• A mode: is one of (the default) matches a contact who has at least one of the values; is none of matches a contact who has none of them.
• The values: tags (Pick tags or type a new one), lists (Pick lists or type a new one) or segments (Pick segments). Tags and lists can be typed even if no contact carries them yet — useful when another step or flow is going to add them. Segments must already exist.

The default branch is Everyone else.

Tags and lists are checked against the contact as they are at that moment. A segment is a dynamic view over your audience that updates as contact data changes (see Segments), so Check segment can lag a very recent change by a few seconds. When a condition is too complex for a single branch — several fields combined with "or", for example — build a segment for it and route with Check segment.

By contact field

Check attribute routes by any field of the contact's profile: country, language, city, date of birth, number of orders, a custom attribute from your data source (see Attributes & events). Use it for the differences that live in the profile — a message in the contact's language, a different offer by country, a path for customers who have ordered before.

Each branch takes one or more conditions with Add condition, each made of a field, an operator and a value. Inside a branch the conditions combine with AND: the contact must meet all of them. There are no "or" groups inside a branch; to accept either of two conditions, add a second branch, or build a segment and use Check segment. Every branch needs at least one condition, and the default branch is Otherwise.

Unnamed branches are titled Branch 1, Branch 2… whatever their condition says, so rename them: on the canvas and in reports, "Spain" says much more than Branch 1.

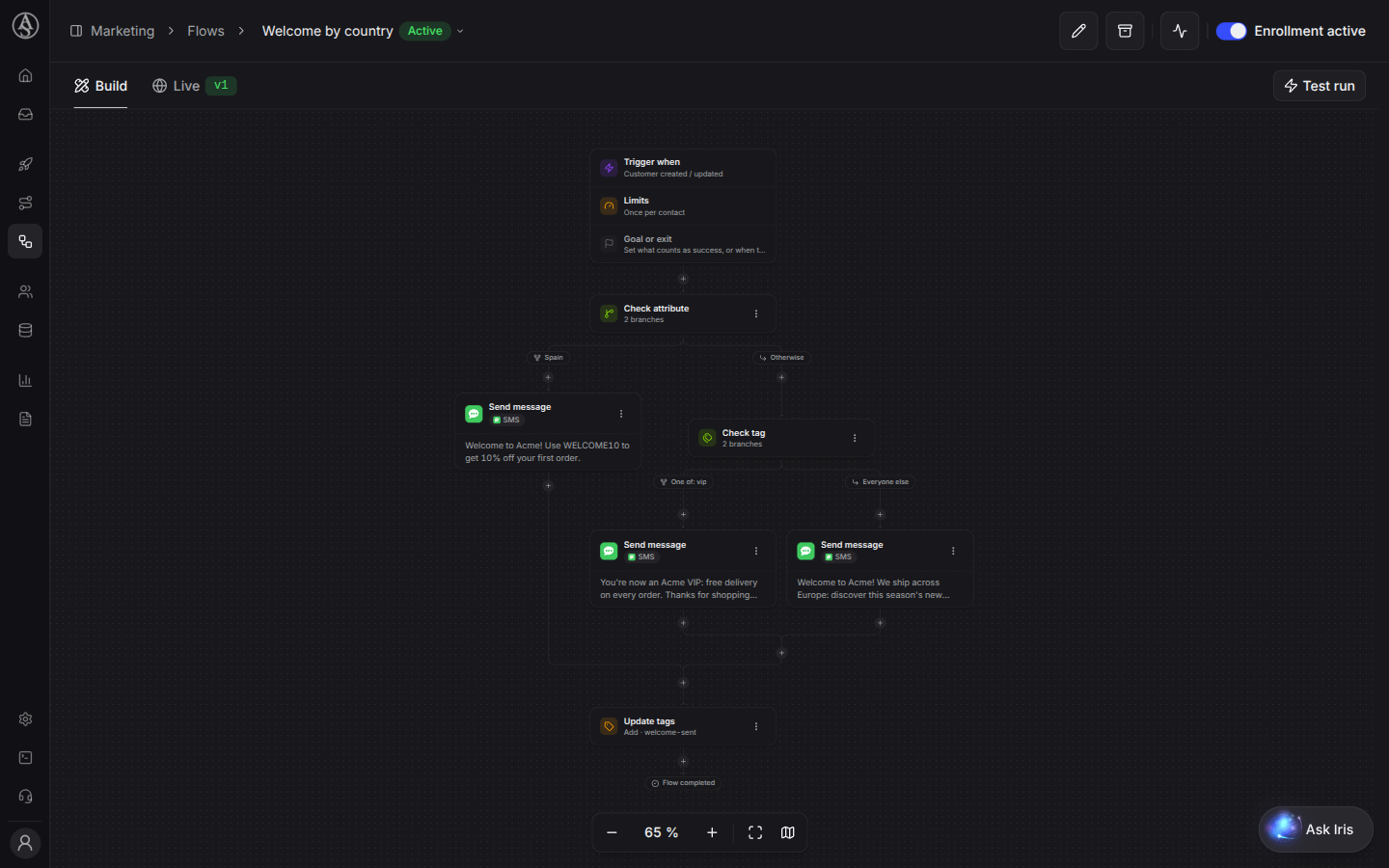

Example: a welcome message by country and for VIPs

A store wants every new contact to get a welcome SMS in the right language, with a special one for VIP customers. The flow Welcome by country starts on Customer created / updated, once per contact:

1. A Check attribute step with one branch, renamed "Spain", for Country is Spain. It holds an SMS in Spanish.
2. The Otherwise branch holds a Check tag step with one branch, is one of vip, which holds the VIP SMS. Its Everyone else branch holds the generic SMS.
3. Below the first split, where every branch rejoins, an Update tags step adds welcome-sent.

flowchart TD
    T["Trigger: Customer created / updated"] --> A{"Check attribute"}
    A -->|Spain| ES["Send SMS in Spanish"]
    A -->|Otherwise| V{"Check tag"}
    V -->|"One of: vip"| VIP["Send VIP SMS"]
    V -->|Everyone else| G["Send generic SMS"]
    ES --> U["Update tags: add welcome-sent"]
    VIP --> U
    G --> U

A contact in Spain gets the Spanish SMS, even if they are a VIP, because the country branch comes first. A VIP outside Spain gets the VIP SMS, and everyone else the generic one. Each contact receives a single message, and all of them end up with the welcome-sent tag, which a single step below the split is enough to add. To give Spanish VIPs their own message, add a Check tag step inside the "Spain" branch too.

By the event that started the flow

Check entry event routes by the data of the event that brought the contact into this run: the amount of the order, the discount code used, the form that was submitted. Use it to treat entries differently without building several flows on the same event.

Each branch takes one or more conditions on the parameters of the trigger event, added with Add condition and combined with AND. Every branch needs at least one condition, and the default branch is Otherwise. The data is always that of the event that started this run, so two contacts who entered with different orders are routed by their own order.

For example, in a Thank you for your order flow on Order created, a branch for orders with a total of 100 or more can send a thank-you with a gift code, while Otherwise sends the standard thank-you.

The trigger's own event conditions and this step do different jobs: the trigger's conditions decide who enters the flow (see The trigger: who enters and when), while Check entry event routes the contacts who have already entered.

By an event the contact did

Check event asks whether the contact has done an event — bought, filled in a form, clicked a campaign — and routes them by the answer. Each branch has:

When both time options are set, the stricter one wins: with Only since entering the flow on and 30 days, only events since entry count. With both off, the contact's whole history counts. The default branch is Otherwise, and recent events can take a few seconds to be seen.

Check event looks back at that moment and decides at once; it doesn't wait for anything. For example, in a flow that starts on Product viewed, a day later a branch for Order created, since entering the flow, holds an Exit flow step for contacts who have already bought, and Otherwise sends everyone else a reminder about the product. To wait for the event to happen — and react as soon as it does — use a Wait for activity with a Did an event branch instead (see Waits › Wait for activity).

With Only since entering the flow, the event that started the run itself does not count. To branch on that event's own data, use Check entry event.

By consent

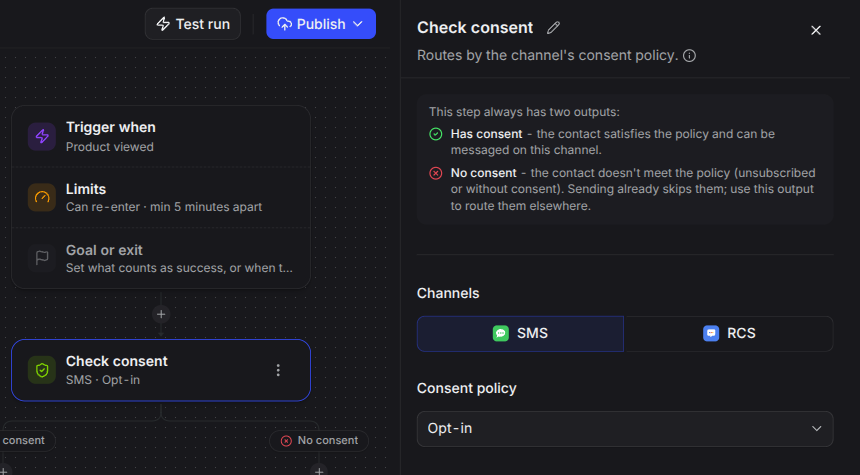

Check consent routes by whether the contact meets a consent policy on a channel. Use it to give contacts who haven't accepted marketing a path of their own — a tag, a message on another channel, the end of the flow — instead of a promotion.

It is the only split with fixed branches. As the panel puts it, This step always has two outputs:

• Has consent — the contact satisfies the policy and can be messaged on this channel.
• No consent — the contact doesn't meet the policy (unsubscribed or without consent). Sending already skips them; use this output to route them elsewhere.

Its settings:

Exactly which contacts each policy lets through, including those with no marketing preference recorded, is explained in Compliance policies. RCS uses the contact's SMS consent, so checking RCS gives the same answer as checking SMS (see Shared consent (RCS & SMS)).

Check consent looks at the policy, not at whether the contact can actually be reached. A contact who accepted marketing but has no mobile number goes down Has consent, and the SMS that follows can't be sent to them. To separate those contacts, add a Check reachability step as well.

Example: an offer only for contacts who accepted marketing

The Spring offer flow from Sending messages starts when a contact views a product (Product viewed). A Check consent step, left as it comes (SMS, Opt-in), goes first:

• Has consent → the SMS with the discount.
• No consent → an Update tags step that adds no-marketing-consent.

Laura declined marketing SMS but never unsubscribed. She goes down No consent: she receives nothing, gets the tag, and her run ends normally. A contact who accepted marketing goes down Has consent and receives the offer. A contact who accepted marketing but has no mobile number also goes down Has consent; the SMS isn't sent and, with the message's default setting, their run stops at that step with the status Stopped.

By channel reachability

Check reachability routes by whether a channel can reach the contact, so you can react before trying to send: tag the contacts who have no mobile number, end the flow for them, or give contacts whose phone is known to support RCS a different path from the rest.

The step works on one channel, chosen under Channel: SMS (the default) or RCS. Each branch selects one or more of three states:

State	SMS	RCS
Supported	The contact has a valid mobile number.	Their phone is known to support RCS.
Unknown	Never used: SMS contacts are never Unknown.	It isn't known yet whether their phone supports RCS.
Not supported	The contact has no valid mobile number.	Their phone is known not to support RCS.

A new Check reachability step starts with one branch, Supported / Unknown, and the Otherwise branch, which in practice catches Not supported. You can change the states of each branch, add more branches, and every branch needs at least one state.

Only Not supported is definitive; Unknown means there isn't conclusive data yet. The step doesn't decide whether a message goes out: a Send message step still decides on its own when it sends, and a Send RCS step with its SMS fallback on still sends the SMS when RCS can't reach the contact (see SMS fallback). Check reachability is for building a different path; the fallback is the safety net inside the message.

For example, a flow that starts with Check reachability on SMS can send Not supported contacts to an Update tags step that adds no-mobile and an Exit flow, so they don't reach any message, and let everyone else continue. Check reachability looks only at the channel, not at consent: to check both, chain it with Check consent.

A/B split

The A/B split sends each contact down a branch at random, according to percentages you set. Use it to compare two or more versions of a message — a 10 % discount against free shipping, a short text against a long one — or two different paths, with real contacts.

Its settings hold a single section, Split, with the hint Contacts are randomly split by these percentages. The rest go to the default branch.

• A new A/B split starts at 50 % / 50 %: one variant and the default branch.
• Add variant adds a branch that starts at 10 %, taken from the others. You can have up to 10 variants plus the default branch, and at least one variant.
• Each variant has a slider, in steps of 1 %. Moving one rebalances the others so that the split always adds up to 100 %, each variant can go down to 1 %, and the default branch keeps at least 2 %: dragging a variant stops where the default branch would drop below that, so the most uneven split with one variant is 98 % / 2 %.
• The last branch, the default one, Automatically receives the remaining percentage. It can't be set directly.
• Branches are titled by their percentage — on the canvas a 50/50 split shows 50% and 50% — and can't be renamed. Their order doesn't matter, because the draw doesn't depend on it.

The draw is made for each run, at the moment the contact reaches the step. A contact who enters the flow again can land in a different branch the next time. With few contacts the real shares can be far from the ones you set; they get closer as more contacts go through.

To compare the results, put a different message, or path, in each branch, publish, and read each message's figures: on the live version, each Send message step shows its own metrics, and the flow report breaks them down by message (see Flow analytics). The A/B split compares paths inside one version of a flow. Testing a new version of the whole flow on part of your contacts is a different feature, the live test (see Testing, publishing and versions).

Example: which welcome offer works better

A store wants to know whether new contacts respond better to a 10 % discount or to free shipping. In its welcome flow, an A/B split at 50 % / 50 % holds an SMS with the discount code in one branch and an SMS with the free-shipping code in the other. Each new contact receives one of the two SMS, chosen at random, never both. After a few weeks, the figures of each Send message step show which offer got more clicks; the store keeps the winning SMS and removes the split in a new version.
